  Motor speed controller
[ +zoom ]
High power big current 48V 800A brushed dc motor controller DC48DP800BL-R01
Print
รหัสสินค้า : 201911_01002
21,500.00 : 19,500.00 บาท

สินค้าพร้อมส่งภายใน 7 วัน
จำนวน    ชิ้น สั่งซื้อสินค้า
Main Specifications: Product

1. PWM pulse width modulation
2. Speed regulation ratio: 1:60
3. Speed regulation mode:
 Potentiometer (10KΩ/2W)/signal, isolator (0-5V,0-10V), Foot accelerator, the Hall handle
 4. Input impedance: ≥10KΩ
5. Working voltage range: ±25% of nominal voltage
6. Soft start time: 1-5 S
7. Ambient temperature: -10℃~+60℃
8. Ambient humidity: relative humidity ≤80RH.(non condensing)
9. Current restriction protection
10. Remote start-stop can be realized
11. Applied for permanent magnet, separate excitation and series-excited motor
12. Thermal protection for controller cutting off output in case of overheating for controller to
effectively protect controller and traveling crane safety.
13. Able to directly judge source of fault through luminous diode under working condition.
14. Stepless speed regulating and anti-phase braking control
15. Built-in precharging resistor and polarity protection diode provide convenience for installation and use
16. Under voltage and over voltage protection effectively protects storage battery and all
components of controller assembly
17. 90 seconds no acceleration signal input can automatically cut off the power of contactor magnet coil to
save the energy of storage battery.
18. Matched motor: PM DC MOTOR, Series excited, Separate excited motor


Product photos
Input voltage range DC48V
Max output current   800A
1 hour current 250A
Operating mode Speed mode
Control ways Potentiometer, throttle
Protection ​ Abnormalitise like over current, overheating, over voltage, less voltage and short circuit will start the protection function.
Temperature protection When the temperature is 85℃, the controller will reduce output by overheating protection and stop output.
Working Temperature -10℃ --  +60℃
Ambient humidity
Relative humidity less than 80RH
 Size L*W*H = 190*152*80 mm
Weight 2.5kg

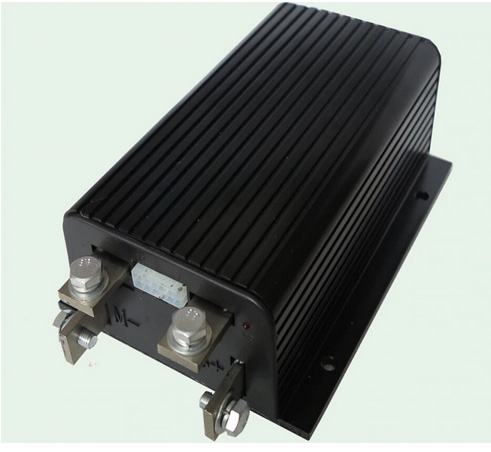

HTB1TfraNVXXXXcBXpXXq6xXFXXXG_

หากมีความสนใจ สามารถติดต่อสอบถามได้ที่ คุณอนุชิต ไล่ทัน โทร. 081-633-5650




[ +zoom ]
High power big current 48V 800A brushed dc motor controller
